How to Choose the Right Flat Roof Solar Mounting System for RCC Roofs
In many urban and industrial areas, flat and RCC (reinforced cement concrete) roofs are the most common surfaces for solar installations. Unlike pitched roofs, flat roofs offer flexibility in layout, ease of maintenance, and optimal use of space. However, to achieve safe, efficient, and long-lasting installations, the choice of the right solar mounting systembecomes essential.
Whether for commercial buildings, factories, or residential apartments, flat roof solar mounting systems must balance structural safety, load distribution, waterproofing, and long-term performance.
1. Understanding Flat Roof and RCC Roof Solar Mounting

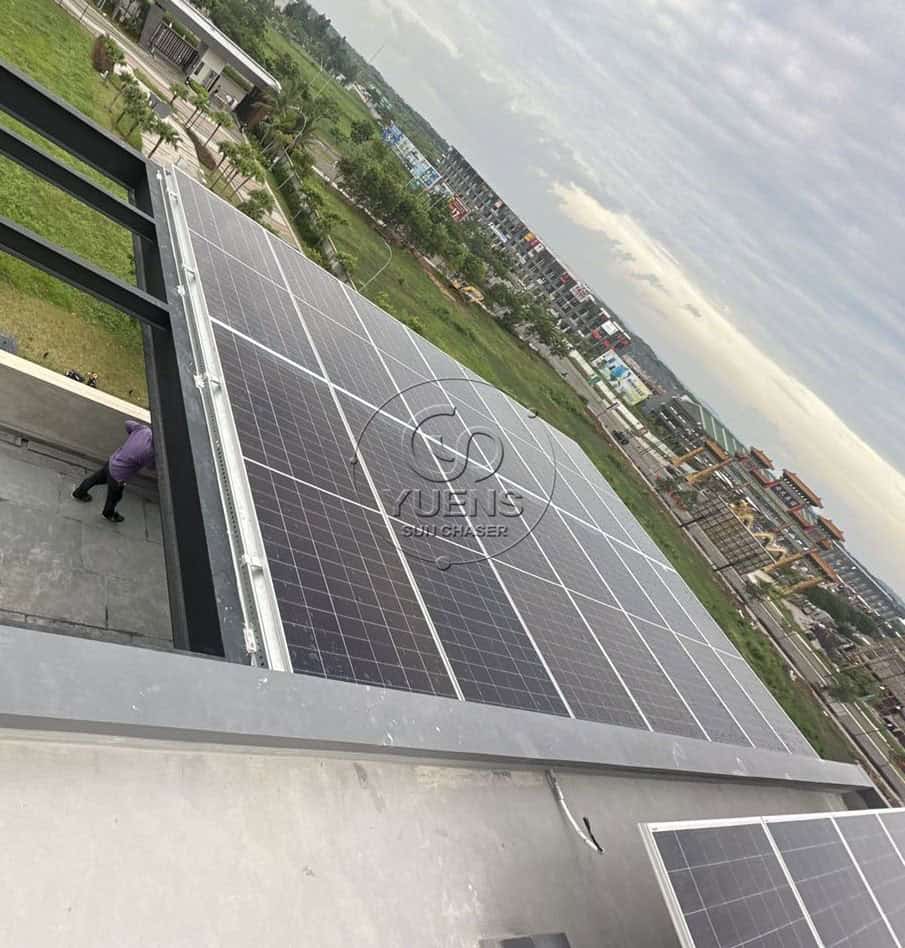

A flat roof solar mounting system is designed to support photovoltaic (PV) modules on a horizontal or slightly inclined roof. RCC roofs — typically made of concrete slabs reinforced with steel — provide a solid base for mounting but require careful design to avoid roof penetration and water leakage.
Two main types of solar mounting systems are commonly used on RCC roofs:
- Ballasted (Non-penetrating) Mounting Systems
These rely on concrete blocks or counterweights to hold the PV array in place using gravity. They avoid roof penetration, preserving waterproof integrity — ideal for commercial and industrial roofs. - Anchored (Penetrative) Mounting Systems
These systems use mechanical fasteners to secure the base structure to the roof slab. When installed correctly with proper sealing, they offer high wind resistance and minimal movement.
The right choice depends on the roof’s load capacity, wind conditions, and project requirements.
2. Key Factors to Consider for RCC Roof Solar Installation
Roof Load Capacity
Before installation, it’s crucial to assess the structural strength of the RCC roof. Each solar mounting structure, whether ballasted or anchored, adds a specific load. Engineers must ensure that the system remains within the roof’s permissible limits.
Wind Speed and Direction
Wind resistance plays a major role in determining tilt angle, ballast weight, and spacing. For high-wind regions, using aerodynamic designs or partial anchoring ensures stability and prevents uplift.
Water Drainage
RCC roofs must maintain smooth drainage after installation. Poor design can lead to water accumulation, which may reduce the roof’s lifespan. Mounting structures should allow sufficient spacing and include drainage channels or elevated bases.
Orientation and Tilt Angle
To maximize sunlight exposure, panels on flat roofs are tilted depending on geographic location, and the wind pressure and snow load are also should be considered. Adjustable triangle brackets or pre-assembled racking systems help achieve optimal angles efficiently.
Cable Management and Maintenance Access
A well-designed mounting system must leave room for wiring and regular cleaning. Cable trays, clips, and clear walkways improve long-term performance and safety during operation.
3. Types of Flat Roof Solar Mounting Systems
When designing a solar system for an RCC or flat roof, the right mounting structure determines not only the efficiency but also the safety and longevity of the installation. Below are the most common types of flat roof solar mounting systems used across commercial and industrial projects.
(1) Ballasted Mounting System
The ballasted mounting system is a non-penetrating solution that relies on weight — typically concrete blocks or ballast trays — to secure the PV array in place. It’s particularly suitable for flat RCC roofs where waterproof integrity must be preserved.
This system minimizes roof damage, allows flexible layout adjustments, and ensures stability through carefully calculated ballast loads. It’s ideal for buildings that can bear moderate additional weight and require fast, clean installation.
(2) Triangle Bracket Mounting
Triangle bracket structures are among the most widely used options for flat roofs. They provide a predefined or adjustable tilt angle, ensuring optimal solar exposure based on geographic latitude.
Depending on the site requirements, these brackets can be installed with ballasted bases (non-penetrating) or mechanical anchors (penetrative). Adjustable triangle systems are particularly efficient for achieving precise energy output on flat or slightly sloped roofs.
(3) Anchored (Penetrative) Mounting System
The anchored system uses expansion bolts or chemical anchors to secure the solar racking directly to the RCC surface. This type of structure is preferred when high wind loads are expected or where the roof’s structural strength allows secure anchoring.
When properly sealed, anchored systems maintain waterproofing performance and provide maximum mechanical stability, making them ideal for coastal or high-altitude regions.
(4) Brackets with Front and Rear Legs
For installations requiring custom tilt angles or added elevation, front and rear leg brackets provide a stable and adaptable solution. These systems raise the front and rear of the panels at different heights to achieve a fixed tilt, ensuring efficient drainage and ventilation under the panels.
They are commonly made from extruded aluminum or galvanized steel, designed for corrosion resistance and long-term outdoor durability.
4. Benefits of Installing Solar Panels on RCC Roofs
- No Roof Replacement Needed: RCC roofs are durable and require minimal modification.
- Flexible Layout Design: Panels can be positioned to avoid shading and optimize power generation.
- Easy Access for Maintenance: Flat surfaces allow convenient inspection and cleaning.
- Better Cooling and Efficiency: Elevated panels enhance airflow and reduce heat buildup beneath the modules.
- Long-Term Cost Savings: Properly mounted solar systems can operate efficiently for over 25 years with minimal maintenance.
5. Why Choose Yuens for Flat Roof Solar Mounting
With years of experience in designing and manufacturing solar mounting structures, Yuens provides comprehensive solutions for flat roof and RCC roof projects worldwide.
Our systems are engineered for:
- Durability: Manufactured from high-strength aluminum or galvanized steel, with corrosion-resistant finishes.
- Adaptability: Compatible with multiple roof types and PV module sizes.
- Efficiency: Pre-assembled components reduce on-site labor and installation time.
- Reliability: All systems are tested and certified to international standards (ISO 9001, UL 2703, CE, TÜV).
Whether you need ballasted, anchored, or adjustable solar mounting for flat roofs, Yuens supports you from design to delivery, ensuring every project meets technical and environmental standards.
Get in touch with our team today to explore solar mounting solutions tailored to your project needs.
